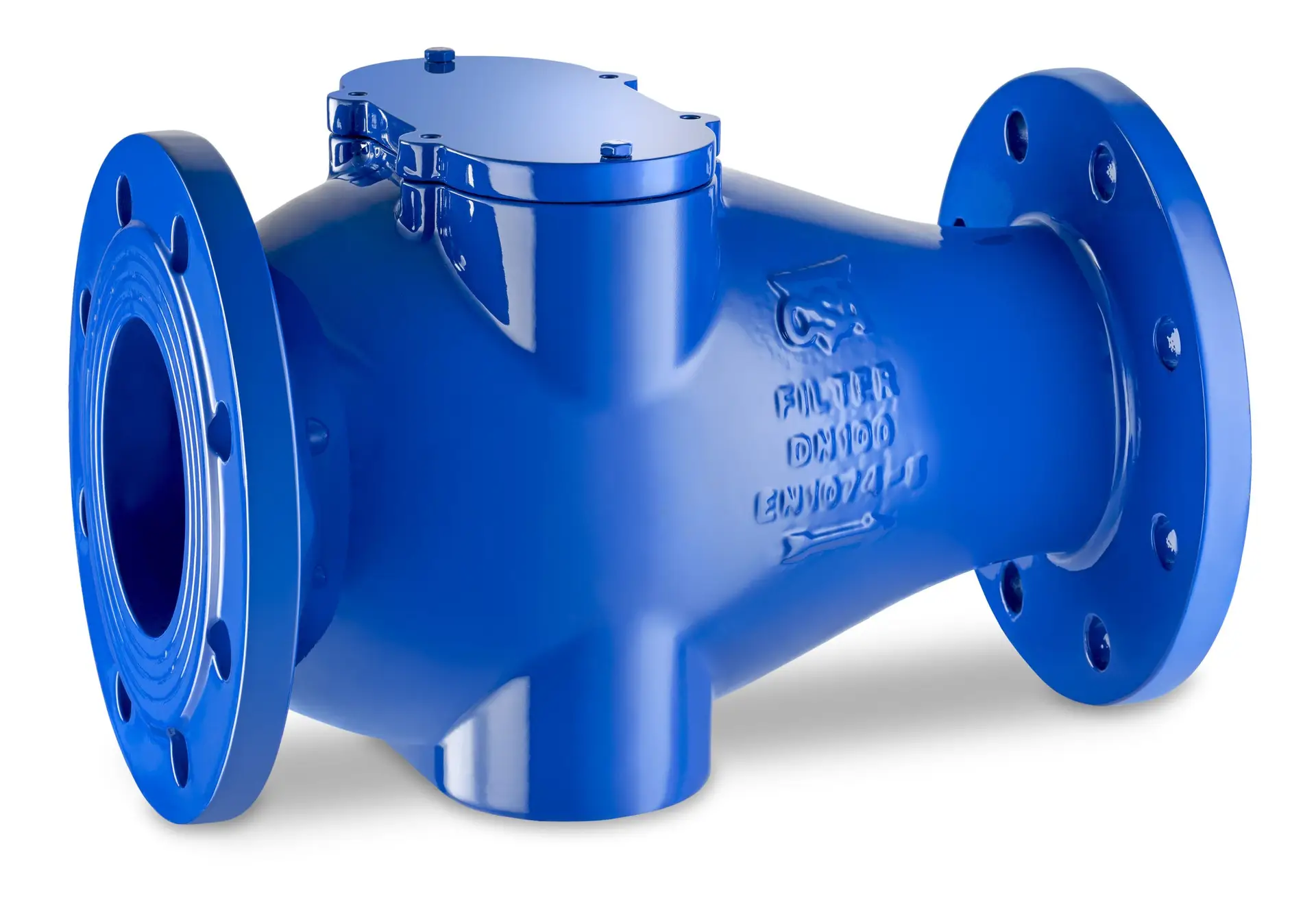

The CSA filter is used when effective filtration is required in industrial systems. Thanks to its compact and needle-shaped design, maintenance is quick and simple, as it only requires removing the top cover.

Its structure and flat stainless steel mesh, positioned perpendicular to the flow, optimize pressure drop compared to most similar solutions on the market.

🔹 Flexible installation: It can be installed in any position; however, it is recommended to place it with the cover on the top for more convenient access.

Characteristics

✔ Epoxy coating applied using FBT technology, blue color RAL 5005.

Operating Conditions

✔ Minimum pilot pressure: 0.5 bar above load loss.
✔ Maximum operating pressure: 25 bar.
✔ Compatible fluid: Treated water.
✔ Maximum temperature: 70°C.

Flange

✔ Available sizes: DN 50 to DN 300.
✔ Standard: Flanges according to EN 1092/2 (other hole patterns available upon request).

Standard Regulation

✔ Certified and tested in compliance with EN 1074/5.
